How Does an Electric Vehicle Battery Management System Monitor and Protect Cells?

Learn how an electric vehicle battery management system tracks cell voltage, temperature, and current, estimates charge, balances cells, and responds to operating limits.

An electric vehicle battery management system monitors the cells that make up the traction battery and helps keep the pack within its designed operating limits. This guide explains what voltage, temperature, and current readings tell the system, how it estimates charge, why cells may need balancing, and what a driver can sensibly do when a battery warning appears.

From cells to a battery pack

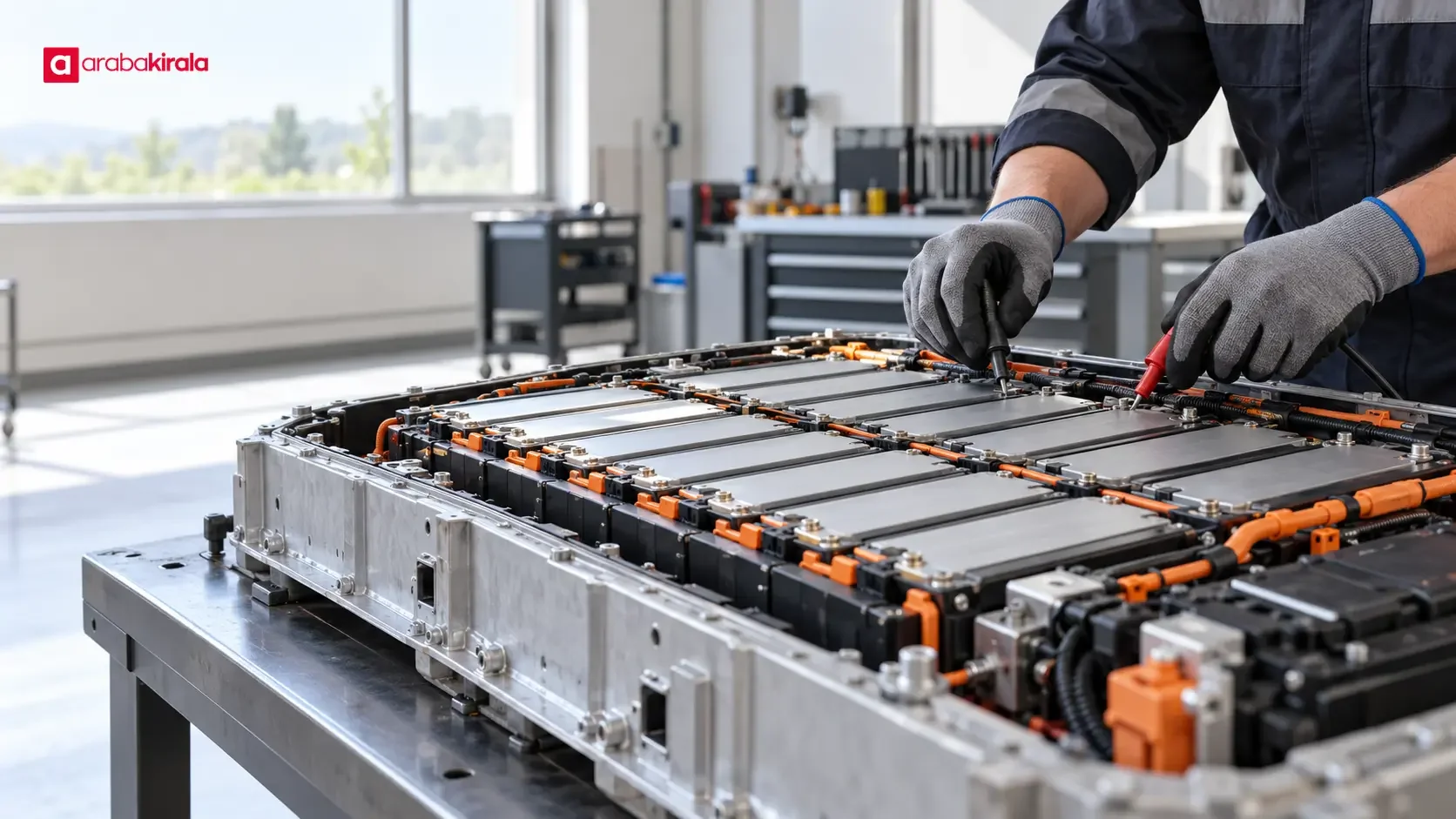

An EV traction battery is made of many cells arranged into electrical and mechanical groups. Those groups form modules, and modules make up the pack. Connecting cells in series raises the pack voltage; parallel arrangements can support greater current capacity. The exact architecture varies by vehicle, so a diagram or procedure for one model should not be assumed to describe another.

Cells built to the same design still do not behave identically throughout use. Small differences in capacity, temperature, and aging can affect how they charge and discharge. A battery management system, often shortened to BMS, tracks relevant measurements and shares information with other vehicle controllers. That information helps the vehicle decide how much power it can request, accept, or make available under current conditions.

What does the BMS measure?

Cell or cell-group voltage

The BMS measures voltage at individual cells or groups of cells, depending on the pack design. Voltage provides information about electrical conditions, but it is not a direct fuel gauge. It can change with temperature and with the current flowing into or out of the battery. The system therefore interprets voltage alongside other measurements and the battery's known behavior.

Monitoring voltage helps the vehicle detect when part of the pack approaches its designed upper or lower operating boundary. Depending on the vehicle's control strategy, the system may limit charging or power, or display a warning. A driver should follow the vehicle manual and the message on the display rather than attempting to open the battery enclosure or measure high-voltage components.

Temperature and current

Temperature sensors report conditions at selected locations in the pack. Battery temperature affects how cells deliver power and accept charging energy. In cold conditions, the vehicle may limit available power or charging speed; high temperatures can also lead to protective controls. Sensor placement, number, and cooling design differ among packs, so it is inaccurate to assume every cell has a dedicated temperature sensor.

Current measurement tracks the electrical flow into and out of the battery. The BMS uses this information with voltage and temperature readings to support power limits and charge estimates. Acceleration can draw substantial power, while regenerative deceleration sends energy back toward the battery. Those operating states affect the cells differently, which is why readings need to be interpreted in context rather than as isolated numbers.

How are charge and battery health estimated?

The percentage shown on the dashboard is not read from a physical fuel gauge inside the cells. The BMS estimates state of charge, commonly called SOC, from measurements and a model of battery behavior. Depending on the design, the estimate may use current accumulated over time, voltage behavior, and other inputs. Automakers can use different calculation methods and calibration strategies.

The estimate gives the driver a useful view of available energy and supports vehicle power management. Temperature, power demand, battery history, and changes in cells over time can affect the estimate. Treat the displayed percentage as a practical planning indicator, not an exact laboratory measurement. A brief change by itself does not diagnose a fault; repeated warnings or a clear change in performance should be handled according to the vehicle manual.

State of health, or SOH, is a broader estimate of how the battery's capacity or performance compares with its earlier condition. SOC asks, “How much charge is estimated to be available now?” SOH asks, “How has the battery's usable condition changed over time?” They are different measures. The detail made available to a driver varies by vehicle.

Why does cell balancing matter?

In a series-connected pack, small differences between cells can grow during use. The cell that reaches a designed upper or lower limit first can constrain how much of the pack's energy is usable. Balancing manages differences so that cells can work together more effectively. It does not restore a cell that has lost capacity, reverse physical aging, or make every cell identical.

With passive balancing, the system dissipates a small amount of energy from a cell or group with a higher charge level, usually as heat. Active balancing designs transfer energy between cells or groups. The method depends on the battery architecture. Drivers do not normally operate balancing as a manual setting; the BMS manages it under conditions defined by the vehicle design.

Balancing should not be confused with a universal instruction to drain the battery completely and recharge it. There is no single charging routine that applies to every EV. Follow the recommendations in the specific vehicle's manual. When renting an electric vehicle, ask the branch staff to show you the charge display and range estimate before setting off; knowing where those indicators appear makes trip planning easier.

How can protective controls affect driving?

The BMS works with other vehicle systems, including charging controls, the motor, and, where fitted, thermal management. If measurements approach operating limits, the vehicle may reduce charging power, traction power, or the amount of regenerative energy it accepts. A driver might notice slower charging, a changed power indicator, or a message on the dashboard.

Those effects can have several causes. Outside temperature, battery temperature, the charger, charge level, and the vehicle's control strategy can all matter. Read the exact dashboard message and consult the manual. If a warning persists or directs you to stop, pull over somewhere safe and contact the vehicle support channel or the branch from which you rented it. Do not touch the battery enclosure, orange high-voltage cables, or other high-voltage components.

Practical steps for drivers

• Before driving, check the displayed charge level, estimated range, and any battery warnings. Use the range estimate to plan, not as a guaranteed distance.
• For a longer journey, consider charging opportunities along the route and watch how the vehicle's estimated consumption changes. Cold weather, speed, hills, passengers, and cargo can affect energy use.
• Learn the vehicle-specific steps for opening the charge port, connecting a cable, and confirming charging from the manual or in-car guidance. Do not force a connector; confirm completion using the vehicle or charger display.
• Do not attempt to adjust cell voltage, BMS software, or battery cooling yourself. Note any warning message and follow the vehicle's safe-use instructions.
• Before renting, ask the branch how to read the vehicle's charge and range displays, how charging is started, and how to contact support. These details can vary with the vehicle and pickup location.

Battery checks when picking up and returning a rental

At pickup, review the charge indicator, estimated range, and any displayed warnings. This gives you a useful starting point for planning. The odometer reading recorded at pickup and return allows the distance driven to be compared; it does not itself describe a mileage allowance. If you notice an existing warning or visible damage, tell the staff before driving and agree on the next step.

Return arrangements involving charge level, a charging location, or where to leave the vehicle can depend on the vehicle and branch. Ask the branch handling your rental for the details that apply to your booking. General online advice should not be treated as a promise about a particular location's procedure.

Summary: From cell readings to driver decisions

An EV battery management system brings together voltage, temperature, and current information to estimate charge and battery condition, manage cell differences, and help keep the pack within its design limits. For drivers, the useful habits are straightforward: check the display, respond to warnings using the manual, avoid high-voltage components, and plan charging around real conditions. If renting an electric car, learn the range and charging screens before leaving, and confirm vehicle- or branch-specific details with the pickup location.
